Meghana's IOT-001 course work. Lv 1

Meghana M. VAUTHORACTIVE
This Report is yet to be approved by a Coordinator.

MEGHANA'S GENERAL TASK REPORT

2 / 1 / 2025


Task 1: 3D Printing

In this task, I learned about 3D printing and how a 3D printer works. I explored the various 3D printing technologies such as FDM, SLA, and others, with a focus on SLA technology using a Marvel 3D printer. I also learned how to slice an STL file using slicing software like Ultimaker Cura

Key Points:

STL file: A 3D model file used for 3D printing.

Slicing STL file: Downloaded an STL file of a snowflake from Thingiverse, sliced it with Ultimaker Cura

Printer Settings: Bed temperature, infill density, and other key parameters.

For PLA

-Nozzle Temperature - 180-220°C

-Bed Temperature - 55-70°C

-First Layer Cooling - NO

-Layer Cooling - 100%

Outcome:

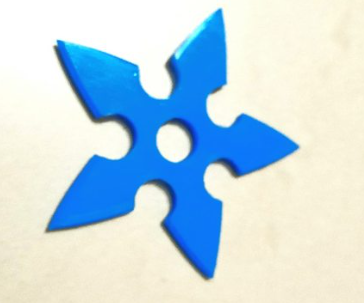

  • Successfully sliced an STL file and printed a model of Snow Flake under the coordinator's supervision.

Photo of the Printed Model

Snow Flake


Task 2: API Development

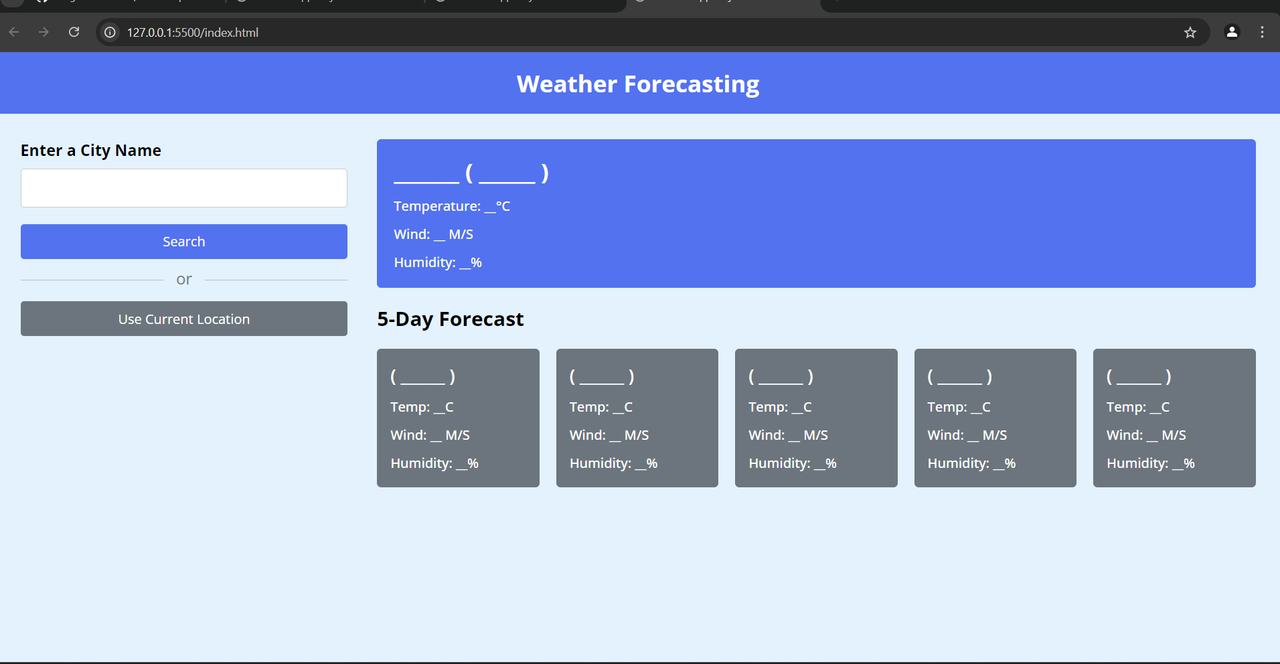

In this task, I learned what an API is and its various applications. I used the Open Weather API to create a simple weather web application. The app made API calls and displayed real-time weather information.This task helped me to get familiarise with HTML and CSS .I faced some problems in activating the API key but then I succeeded in doing it.

-GitHub repository link : Link for Repo

-Weather app: Link for website

weather app


Task 3: Working with GitHub

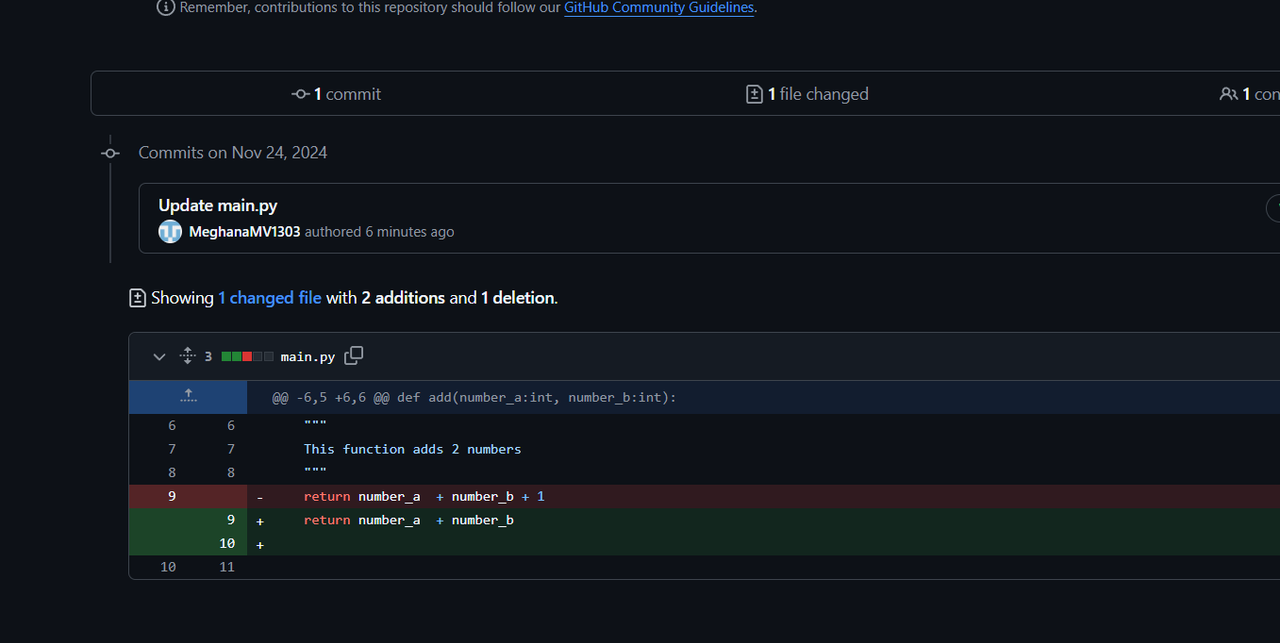

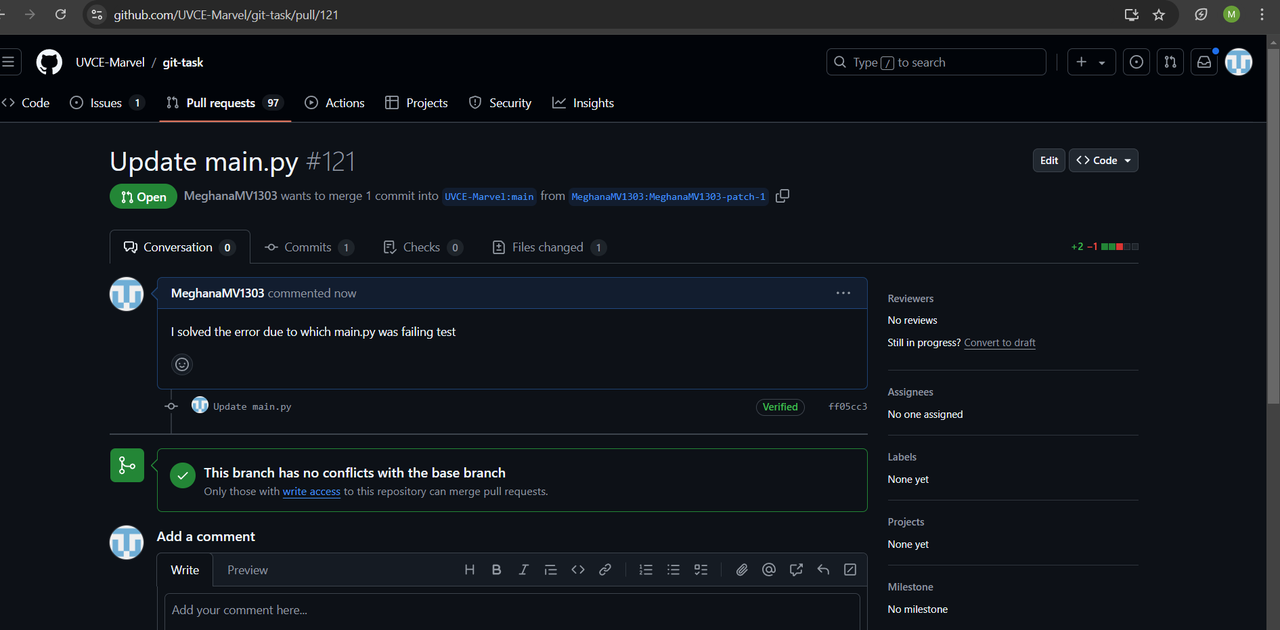

This task familiarized me with GitHub workflows, including actions, issues, and pull requests. I explored a Git repository and followed the steps outlined in the readme file to complete the task.Then learned to perform some changes in branch.Then I debbuged main.py which was failing test due to "+1" in the code.Then I opened a pull request proposing to fix the issue.

Github task

Git

Link to GitHub Repo : Link to github

Outcome:

  • Completed necessary tasks as per the repository’s instructions.

Task 4: Command Line Familiarization on Ubuntu

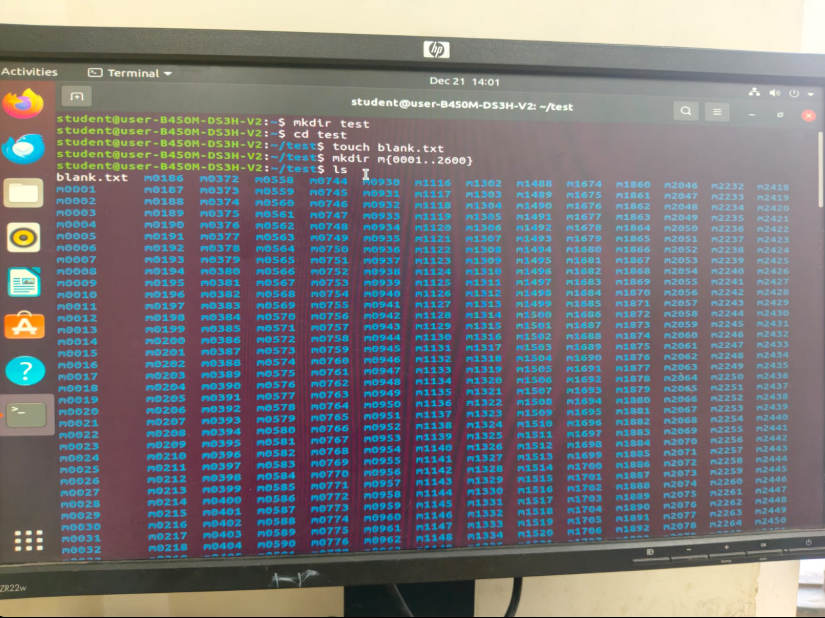

In this task, I got familiar with Ubuntu's command line interface. I created a folder named "test", navigated through it, created files, listed contents, and created 2600 folders using the command line. I also concatenated text files and displayed their contents in the terminal.

Commands Used:

mkdir : Created a folder named "test".

cd : Navigated into the "test" folder.

touch : Created a blank file without using any text editor.

ls : Listed the files in the folder.

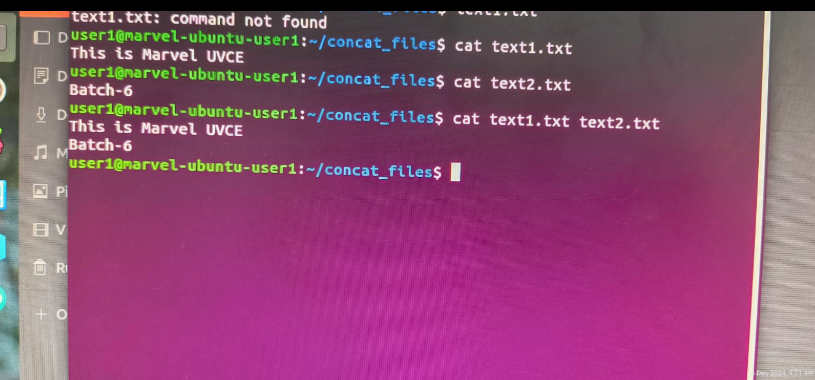

cat : Concatenated and displayed content of two text files.

ubuntu

ubu

Outcome:

  • Successfully completed all the subtasks using the command line on Ubuntu.

Task 5: Kaggle Contest

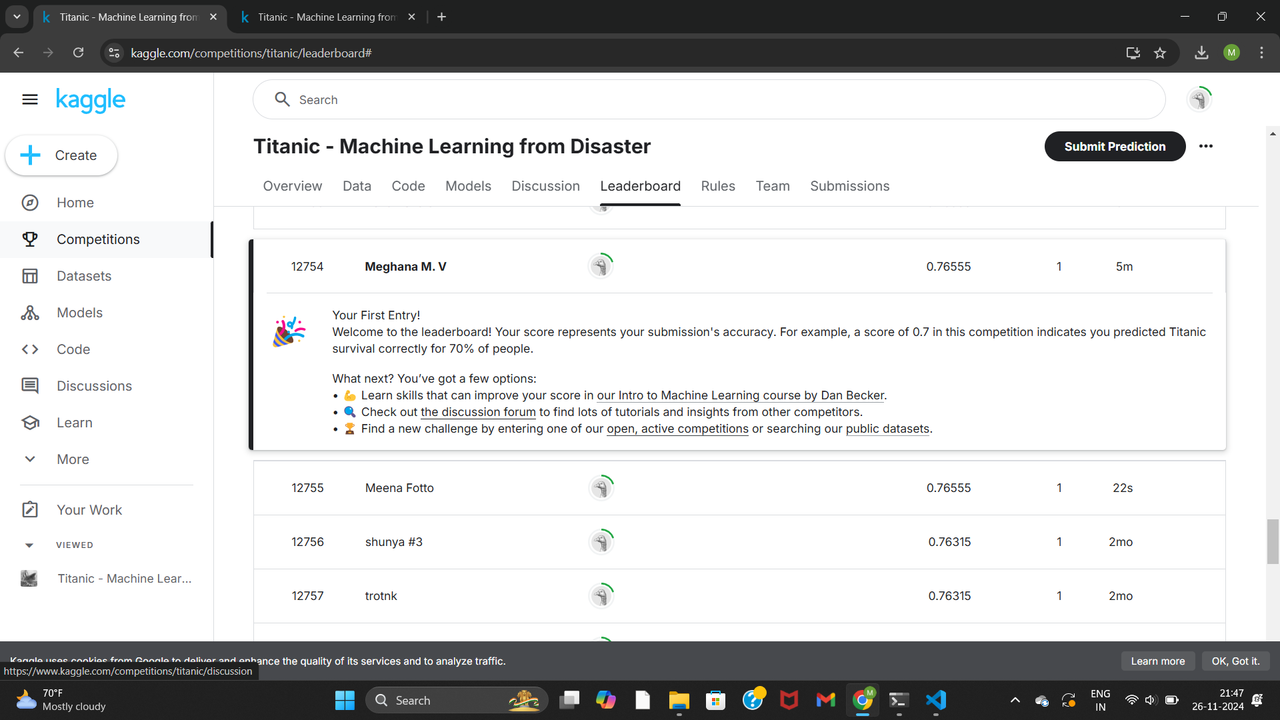

I created a Kaggle account and participated in the Titanic ML competition. My goal was to build a machine learning model to predict passenger survival from the Titanic dataset. I used a regression model and achieved an accuracy of 92.26% on the training set.

  • Kaggle Titanic competition: photo

Outcome:

  • Submitted the model and gained experience with Kaggle competitions.

Task 6: Working with Pandas and Matplotlib

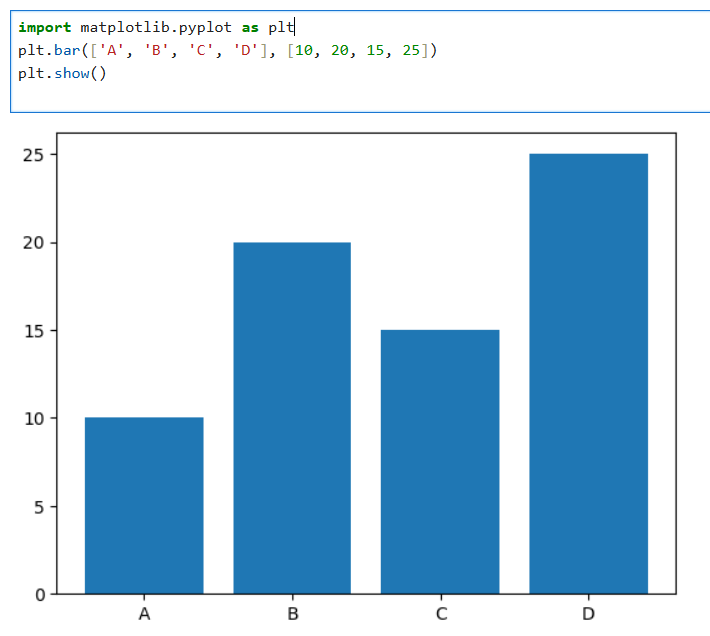

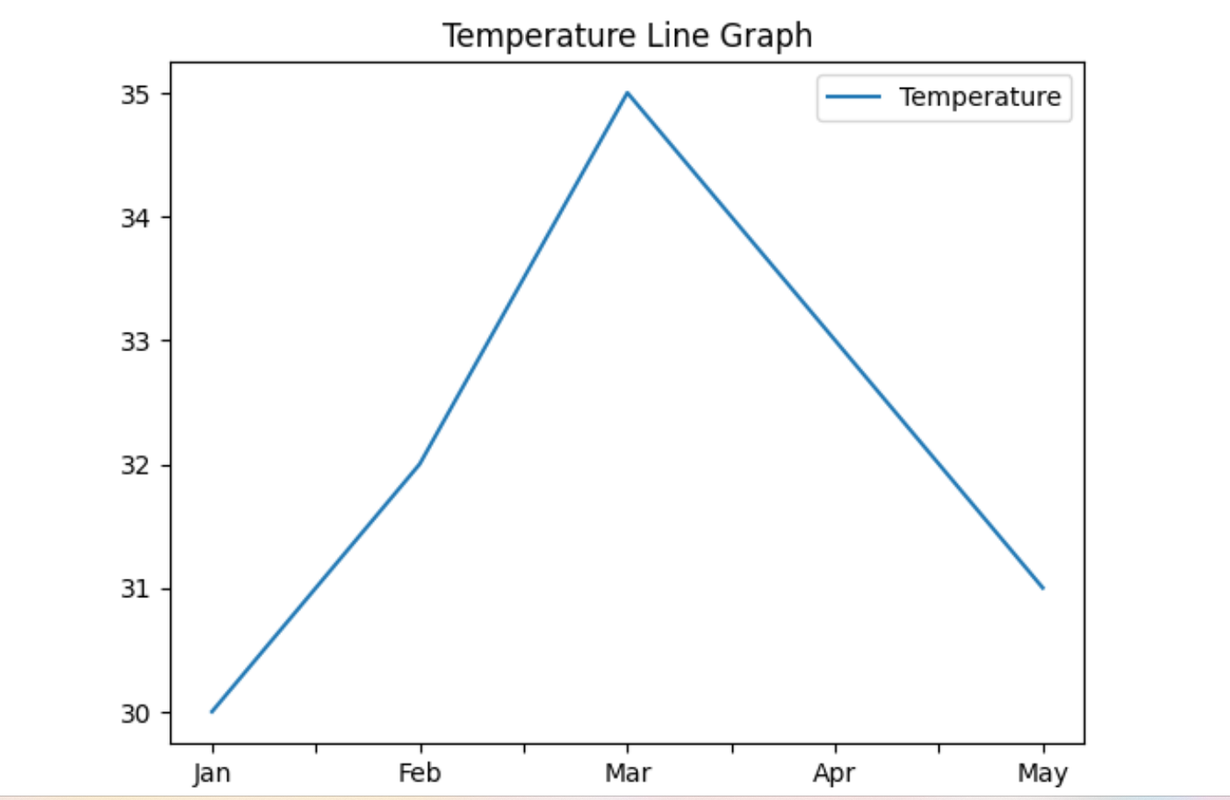

I learned to use Pandas for data manipulation and Matplotlib for visualization. I used a dataset of my choice to create line graphs, bar graphs, and scatter plots.

Deliverables:

  • Line, bar, and scatter plots using Pandas and Matplotlib.

bargraph

linegraph

SCATTER

Link For Code :link

Outcome:

  • Successfully visualized data and generated various graphs.

Task 7: Create a Portfolio Webpage

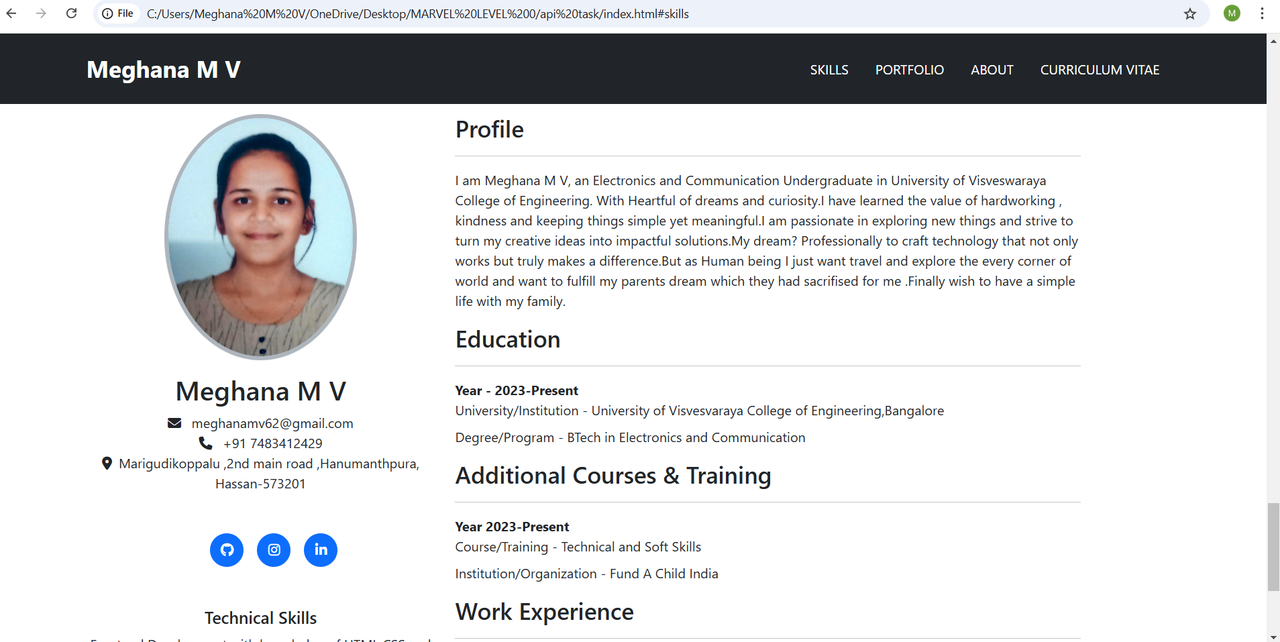

I created a personal portfolio webpage to showcase my projects, interests, and social media profiles. The website is responsive and was pushed to GitHub.

Portfolio website: link for portfolio

portfolio

Outcome:

  • Portfolio webpage published and linked to my GitHub repository.

Task 8: Writing Resource Article Using Markdown

I wrote a technical resource article on a topic of Egde Computing using Markdown. The article was

Link for Article Task: Article task link


article


Task 9: Tinkercad Circuit Design

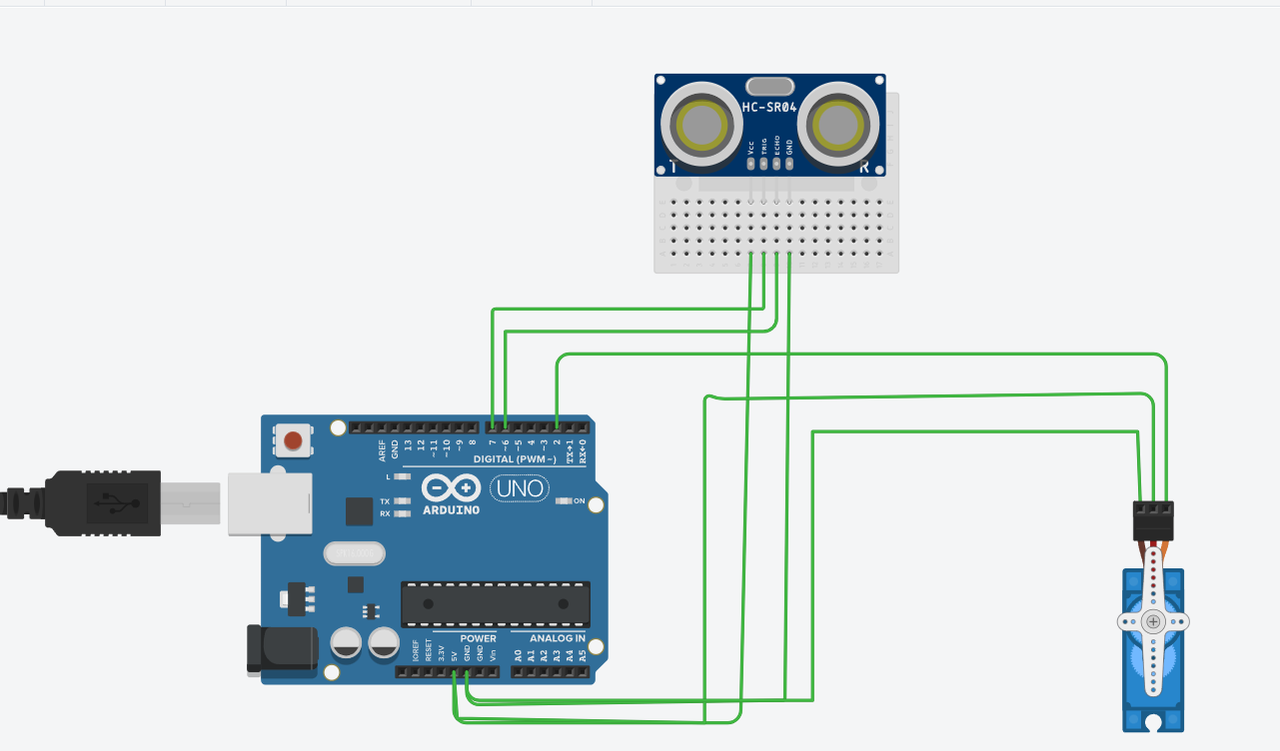

In this task, I created a Tinkercad account and explored the platform to simulate circuits. I built a radar system using an ultrasonic sensor and a servo motor to detect objects within a certain range. The ultrasonic sensor emits sound waves, and by measuring how long it takes for them to return, it calculates the distance. The servo motor rotates the sensor, providing a broader detection area.

Key Concepts:

  • Ultrasonic Sensor: Measures distances using sound waves.
  • Servo Motor: Rotates the sensor to scan a larger area for obstacles.

Outcome:

  • Successfully created and tested a radar system in Tinkercad to detect obstacles.

Links:

-Photos/Videos of the Project


Task 10: Speed Control of DC Motor

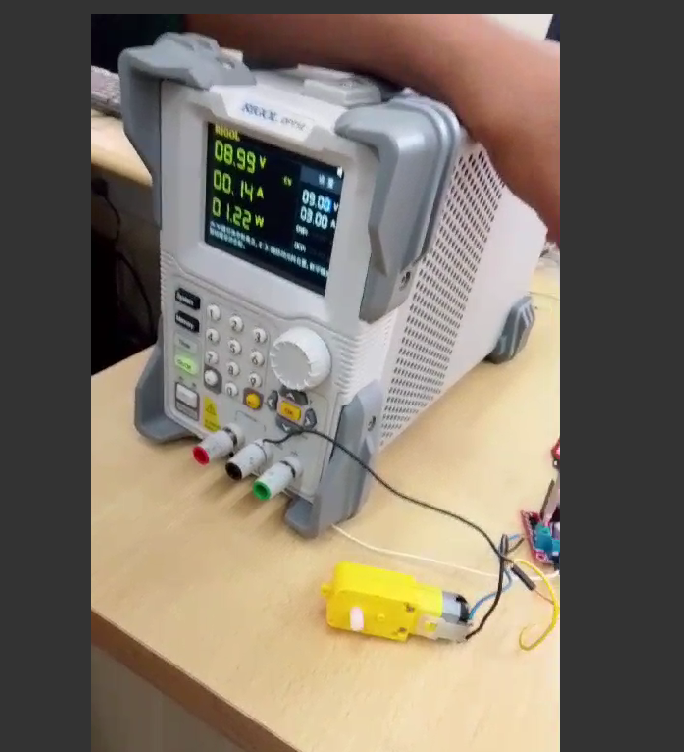

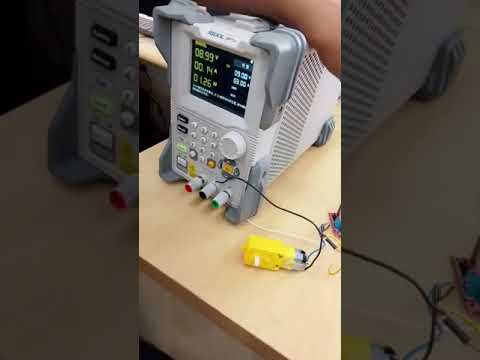

In this task, I explored controlling the speed of a DC motor using the L298N motor driver and Arduino UNO. I first simulated the circuit on Tinkercad, and then built the physical setup. The speed of the motor was controlled using a potentiometer, and I could change the motor speed by adjusting the potentiometer.

Key Components:

  • L298N Motor Driver: Used to control the speed of the DC motor.
  • Arduino UNO: Microcontroller that interfaces with the motor and potentiometer.

Key Points:

1.Potentiometer : (from left to right) GND (A0) 5v

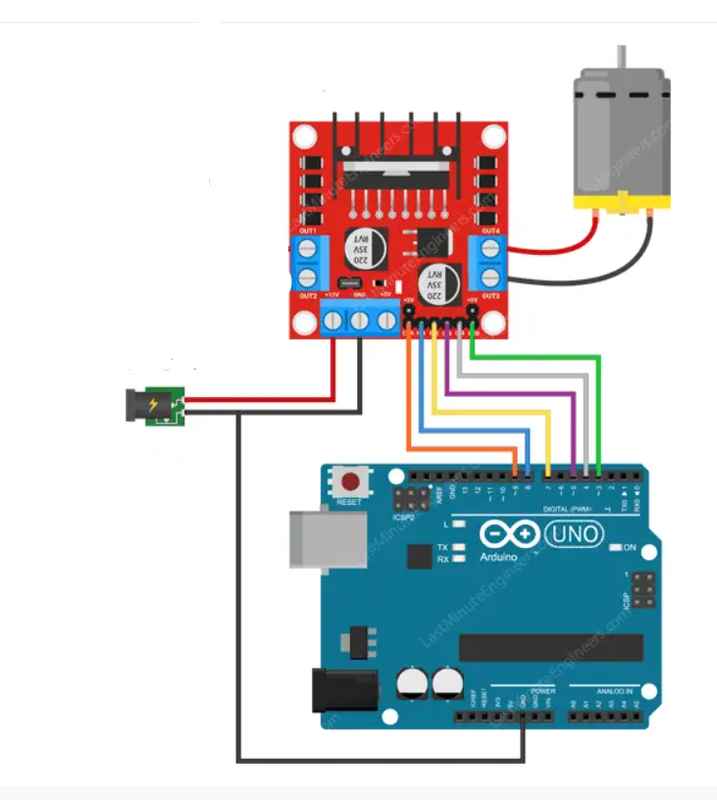

2.L298n: IN1 IN2 ENA with respectively D8,D9 and D10 From Arduino and the DC motor is in Out1 and Out2

3.The driver is powerd by 9v battery wired with +12v and GND ( don't forget to ground the Arduino too)

4.The ENA here wired with D10 should always be wired with a pin that can deliver PWM signal



Video Title

Outcome:

  • Successfully controlled the motor speed with both virtual and real setups.

Task 11: LED Toggle Using ESP32

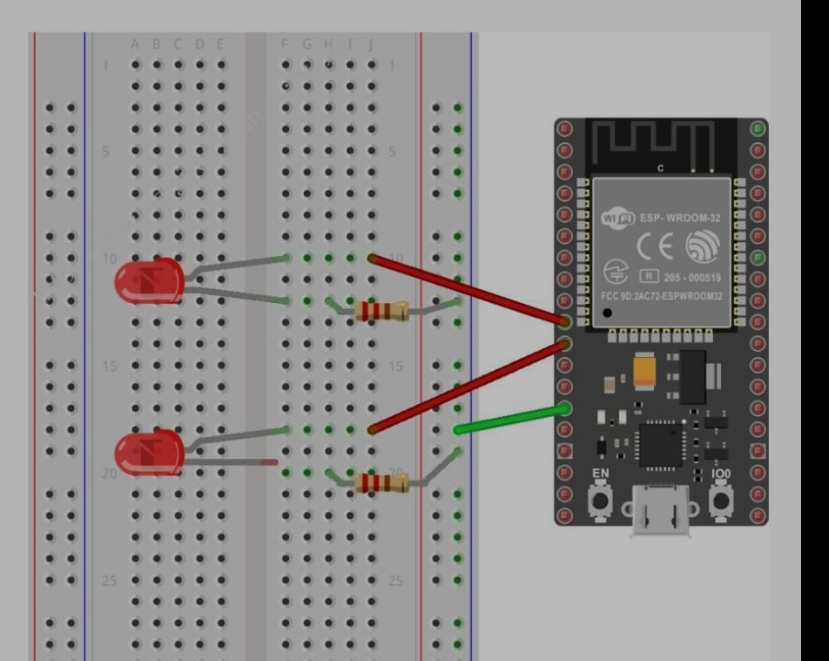

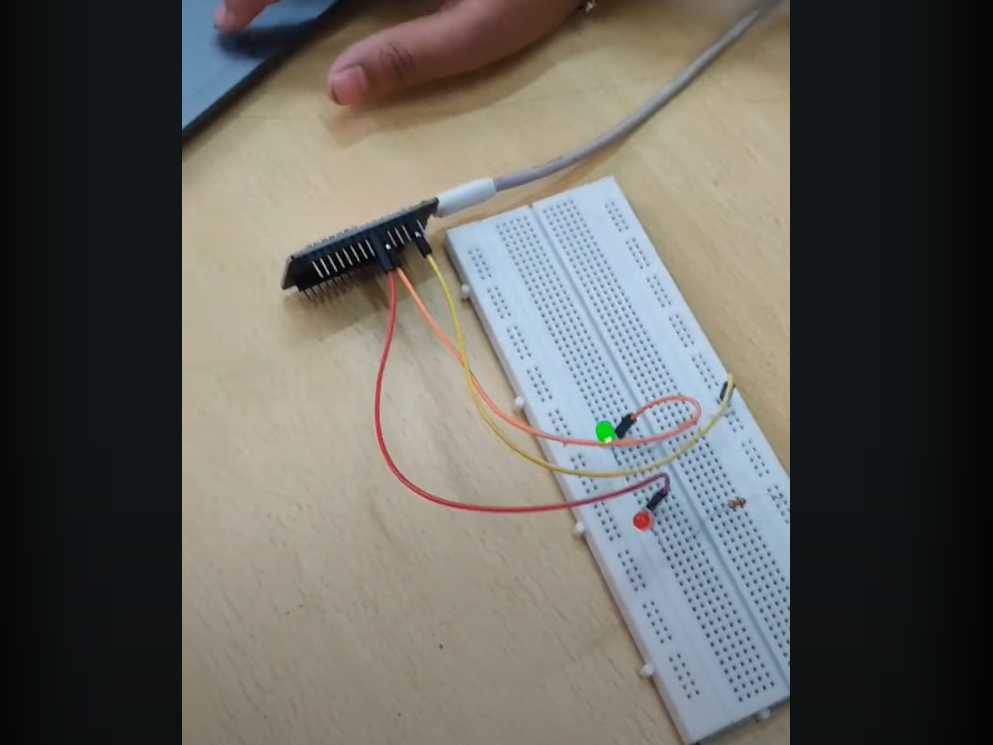

I learned about the ESP32 and its capabilities. I created a web server using ESP32, which allowed me to toggle an LED connected to its GPIO pins. I could control the LED using a simple web interface, making it easy to turn the LED on and off remotely.

Key Notes

Components Required :

-ESP32 development board

-2x 5mm LED

-2x 330 Ohm Resistor

-Breadboard

-Jumper wires

Outcome:

  • Successfully toggled an LED using ESP32 via a web interface.

Links:

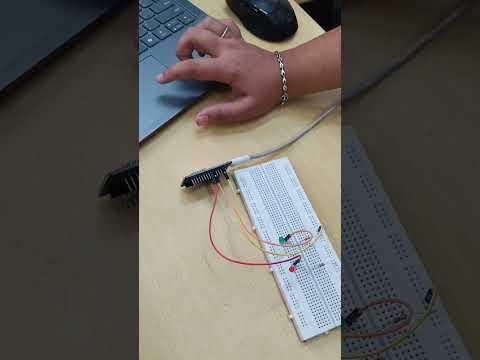

  • Photos/Videos of the Project

photo Video Title


Task 12: Soldering Prerequisites

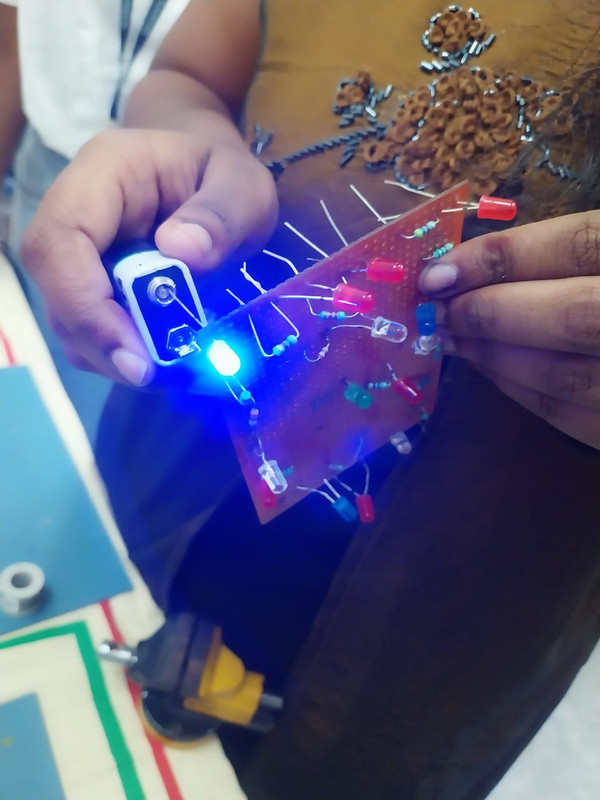

With the guidance of a coordinator, I learned the basics of soldering and desoldering. I used soldering equipment like a soldering iron, wick, and flux to perform basic soldering on a perf board, creating a simple LED circuit.

Key Concepts:

  • Soldering Iron: Used to heat and melt solder for connecting components.
  • Soldering Wick: Used for removing excess solder.
  • Flux: Used to clean surfaces before soldering to ensure better adhesion.

Key Points

-A soldering iron is a hand tool that plugs into a standard 120v AC outlet and heats up in order to melt solder around electrical connections.

-Solder is a metal alloy material that is melted to create a permanent bond between electrical parts.

-Soldering flux is mainly used to prepare the metal surfaces before soldering by cleaning and removing any oxides and impurities.

-To desolder a joint, you will need solder wick which is also known as desoldering braid.

Outcome:

  • Successfully soldered an LED circuit under supervision.

  • Photos/Videos of the Soldering Process


Task 13: 555 Astable Multivibrator

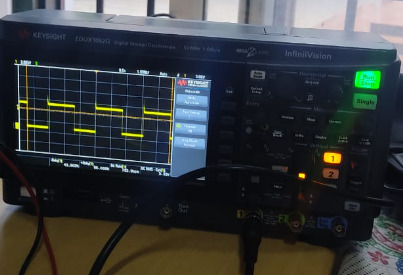

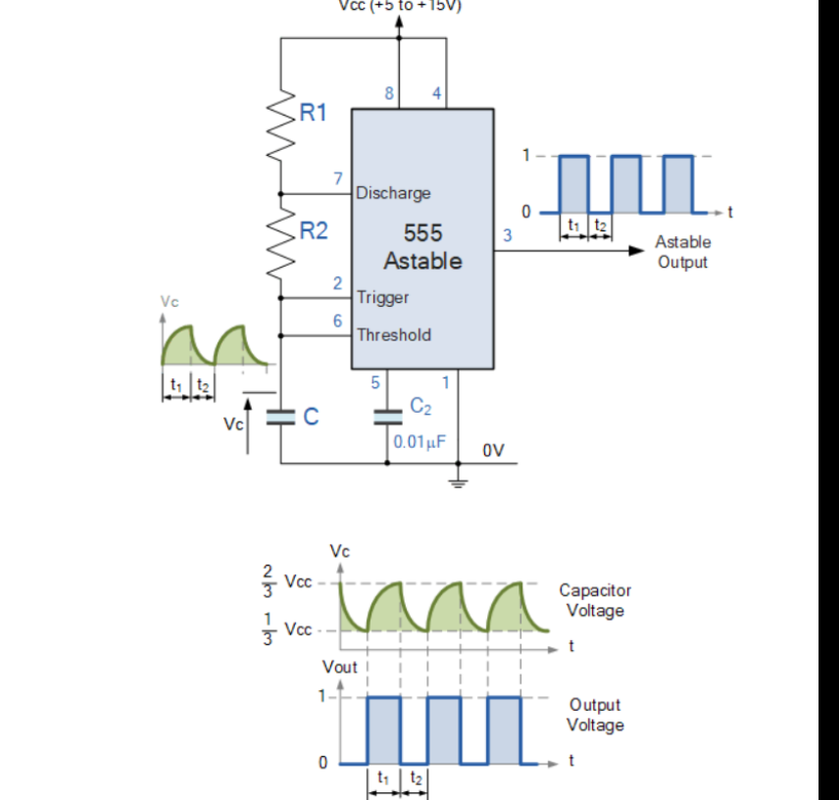

I designed a 555 astable multivibrator circuit to produce a 60% duty cycle. This circuit generated a square wave, and I observed its output using an oscilloscope (DSO) to verify the waveform.

Key Components:

-555 Timer IC

-Capacitors: C1, C2 = 0.01 μF

-Resistors: R1 = 10 kΩ, R2 = 22 kΩ (adjusted due to availability)

-Power Supply: 5V

-Oscilloscope: To measure waveform and duty cycle.

Circuit Function:

-In astable mode, the 555 Timer IC oscillates continuously, producing square wave pulses.

Frequency and duty cycle depend on R1, R2, and C:

Frequency (f) = 1.44 / [(R1 + 2R2) × C]

Duty Cycle (%) = ((R1 + R2) / (R1 + 2R2)) × 100

Results:

Target: 60% Duty Cycle.

Achieved: 59.331% Duty Cycle (due to nearest resistor values).

Outcome:

  • Successfully built and tested the 555 multivibrator circuit.

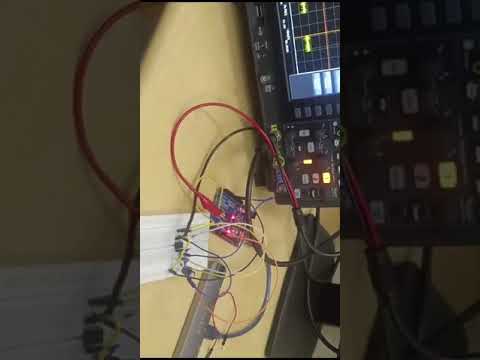

  • Photos/Videos of the Project photo

Video Title


Task 14: Karnaugh Maps and Logic Circuits

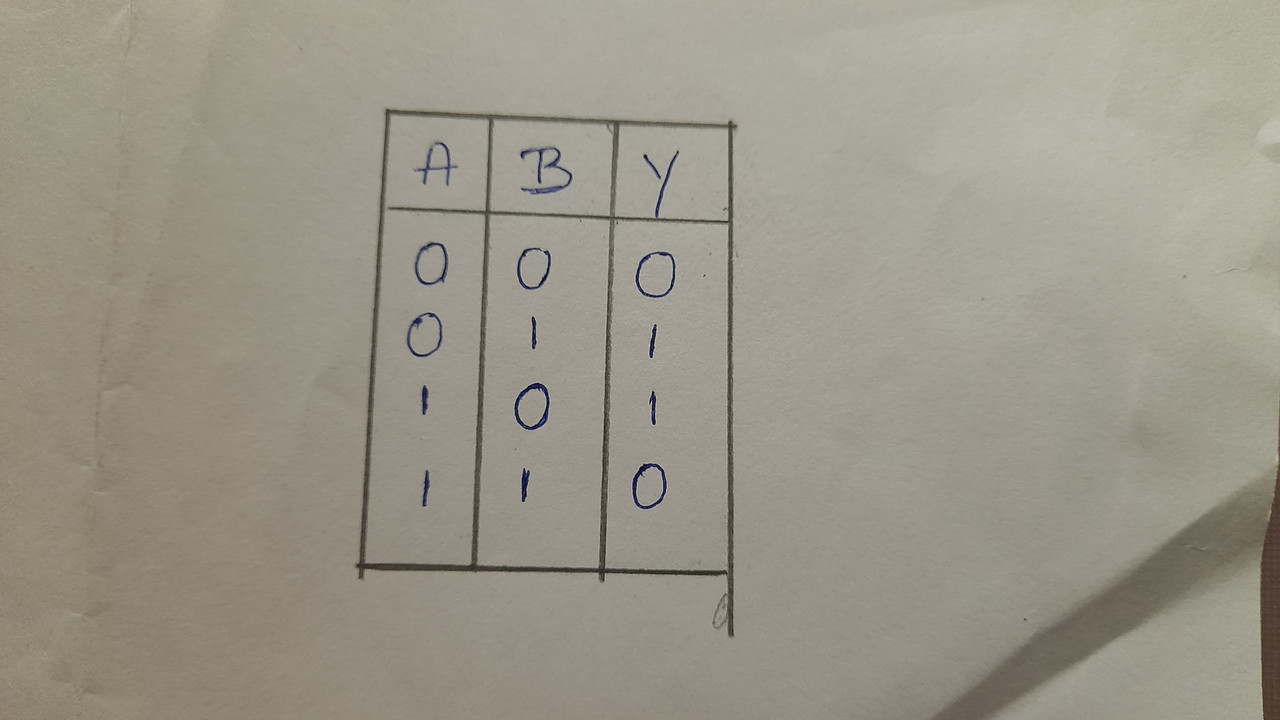

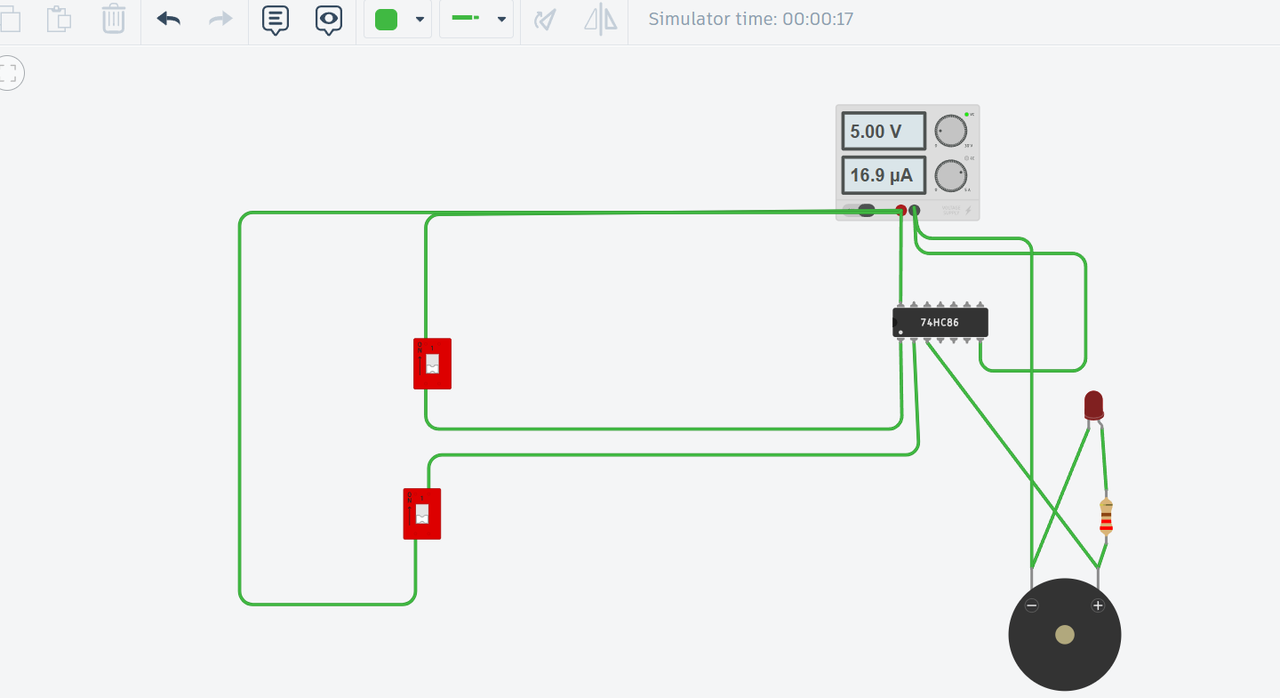

I designed a burglar alarm system using Karnaugh maps and logic gates. The alarm is triggered when certain conditions (like a door being open and a key being pressed) are met.I derived the truth table for the given situtaion ,which is given below .Then got to know that it resembeles XOR gate ,derived a K-Map for it and then I designed circuit using XOR gate and buzzer as shown below .The buzzer will activate only when door is open and key pressed or key not pressed and door is close.

Key Concepts:

Karnaugh Map (K-map): A tool to simplify Boolean expressions.

marvel

Logic Gates: Used to implement the conditions that trigger the alarm.

Outcome:


Task 15: Active Participation

I participated in a technical event and received a certificate of participation in Kagada in 2024. Additionally, I have contributed in Lie Detector Model for Marvel Open Day.

Outcome:

  • Successfully participated in a technical event and earned a certificate.

  • Event Certificate active


To further continue reading my tasks click here
