โœˆ๏ธ 1. Basics of Propellers

A propeller is a rotating device with blades that converts rotational motion into thrust. It works like a rotating wing (airfoil) to produce a pressure difference: low pressure in front and high pressure behind, generating forward thrust.


๐Ÿ“ 2. Propeller Nomenclature

Propellers are specified by Diameter ร— Pitch:

  • Diameter: The total circular span traced by the blade tips.
  • Pitch: The theoretical distance the propeller would advance in one revolution without slip.

Example: 10ร—4.5 means:

  • 10-inch diameter
  • 4.5-inch pitch

๐Ÿ”„ 3. Need for Clockwise & Anticlockwise Propellers

In multi-rotor systems like drones:

  • Some propellers spin Clockwise (CW), some Counter-Clockwise (CCW).
  • This cancels out torque, stabilizes the craft, and enables yaw (turning).

๐Ÿ” 4. Identification of CW & CCW Propellers

To identify:

  • CW (Clockwise): Leading edge is higher in the direction of clockwise rotation.
  • CCW (Counter-Clockwise): Leading edge is higher in the counter-clockwise direction.
  • Manufacturers often mark them CW or CCW.

โš™๏ธ 5. Factors Affecting Propeller Efficiency

Main factors include:

  • Blade Number: More blades = more thrust but more drag.
  • Blade Shape & Airfoil: Aerodynamic shapes reduce drag.
  • Diameter & Pitch: Larger diameter moves more air; higher pitch increases forward speed.
  • Material: Lightweight and strong materials improve performance.
  • RPM: Optimal speed reduces airflow separation and noise.

๐Ÿ”„ 6. Conversion from 2-Blade to 3-Blade Propellers

Why convert?

  • 3-blade props produce more thrust at lower RPM, improve stability, and lower noise.
  • 2-blade props have higher efficiency at higher speeds.

How to convert:

  • Use a 3-blade prop with slightly smaller diameter or pitch to keep motor load similar.
    • Example: Replace a 10ร—4.5 2-blade with a 9ร—4.5 3-blade.

Prop3 Image

Prop4 Image

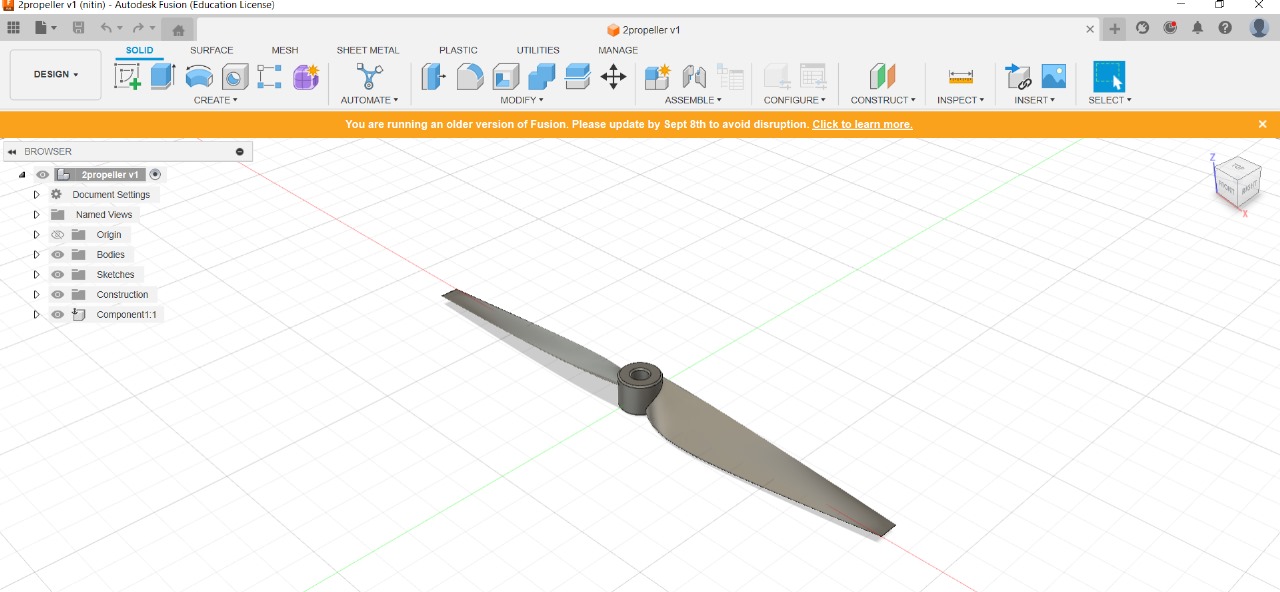

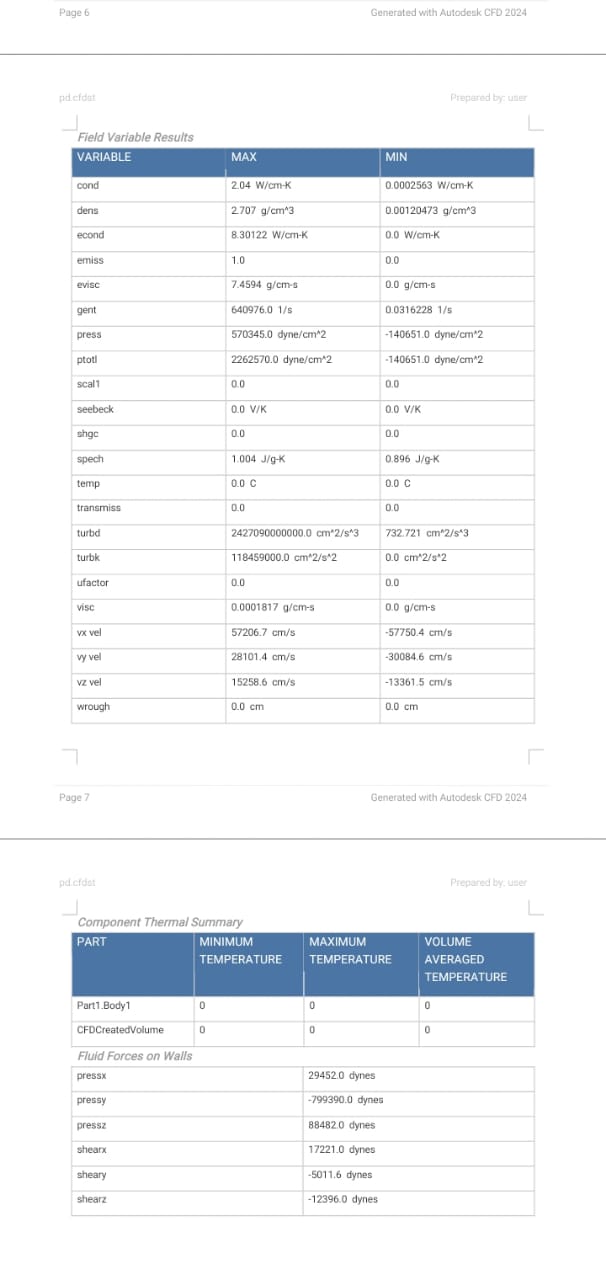

Prop2 Image

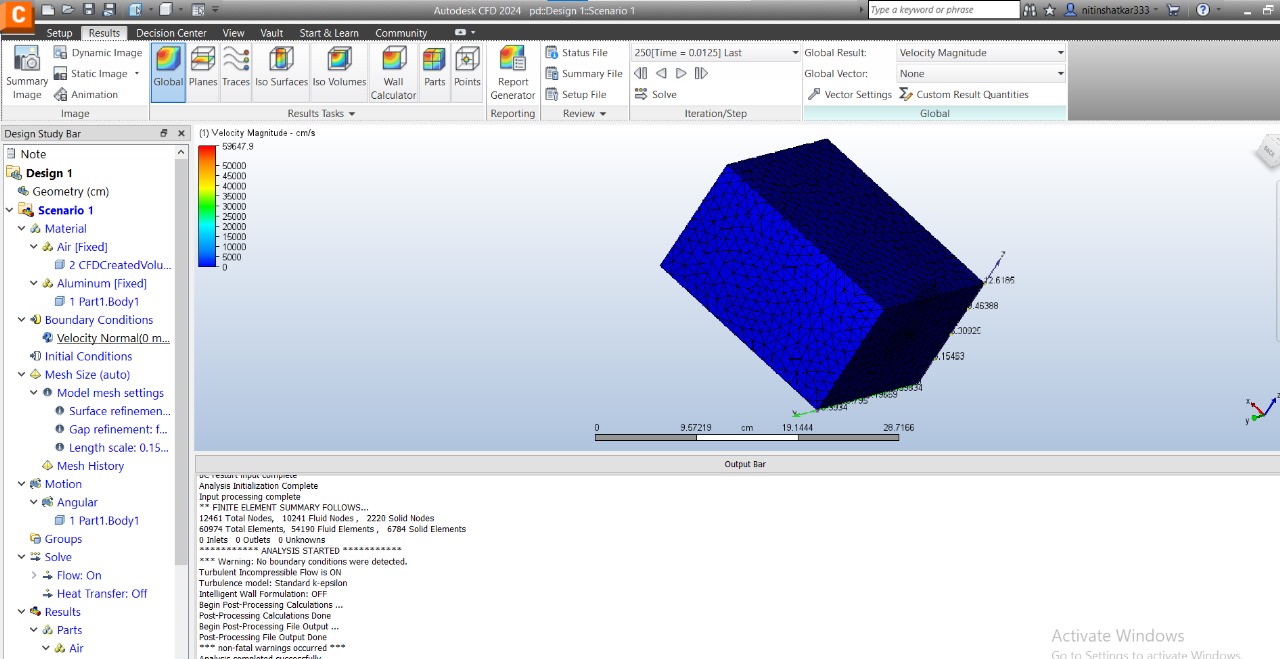

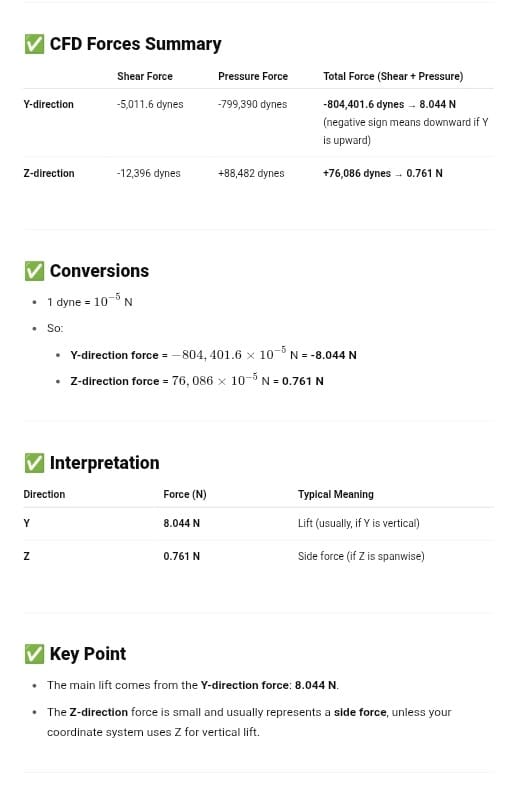

Prop Image
