Technical Task:

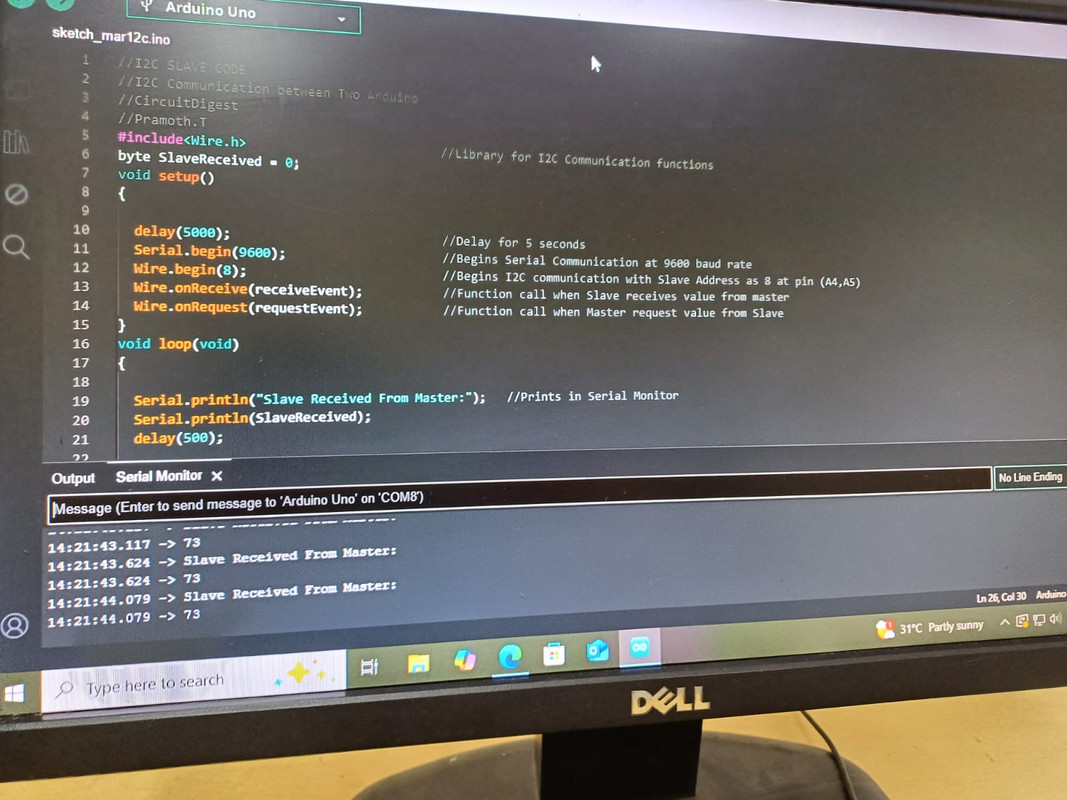

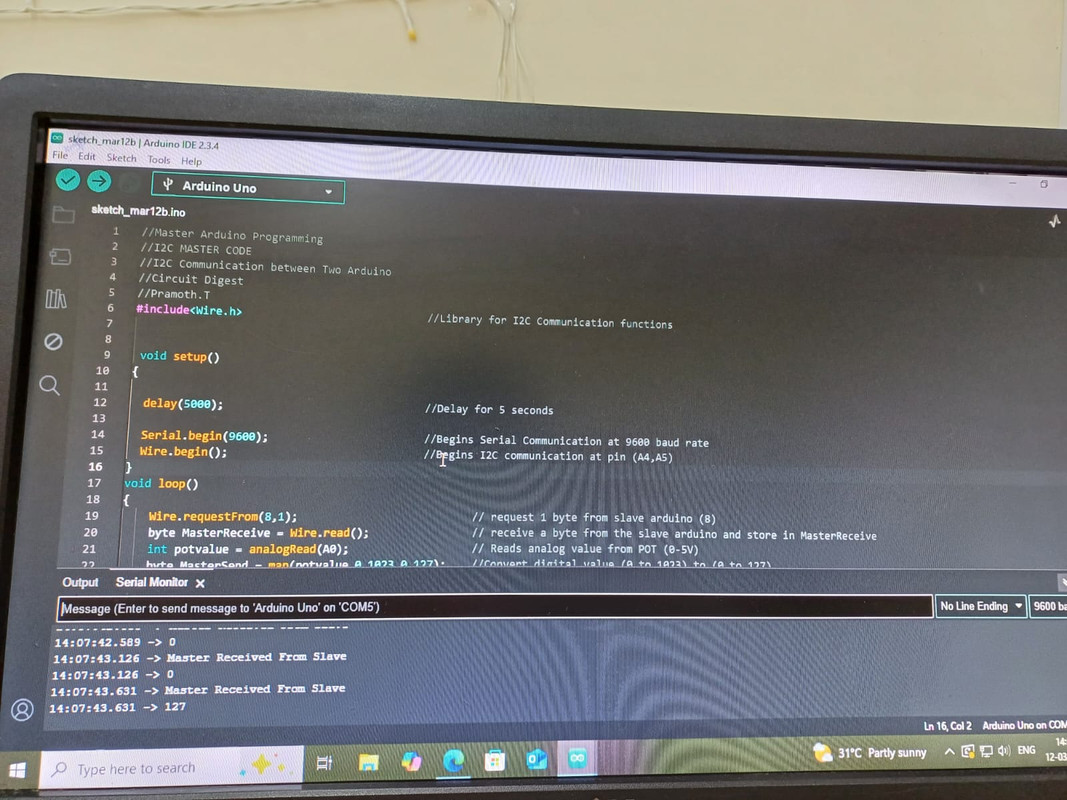

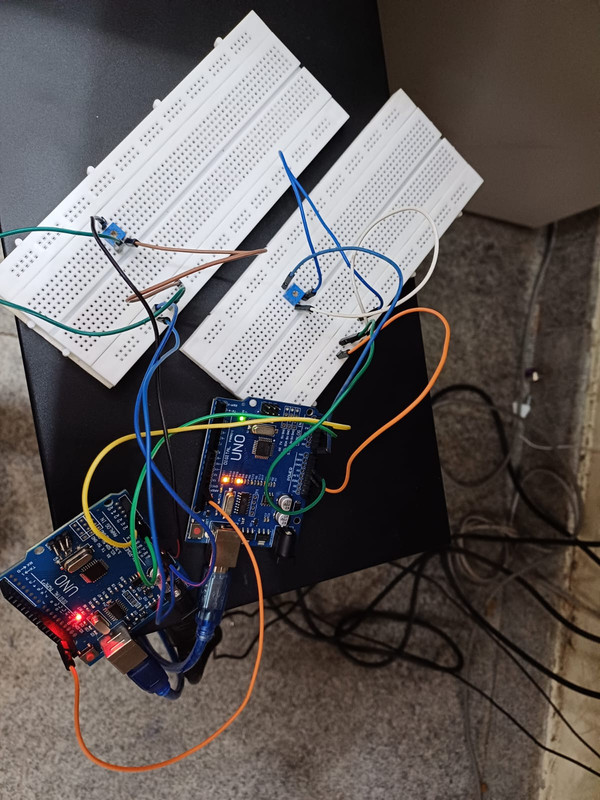

Task 1- I2C Communication between two arduino
I²C (Inter-Integrated Circuit) is a communication protocol that allows multiple devices to communicate over two wires: SDA (data line) and SCL (clock line). You can use I²C to connect two Arduino boards, where one acts as a master and the other as a slave.I²C is a serial bus used for communication between microcontrollers, sensors, and peripherals. It requires only two wires:
- SDA (Serial Data Line) (Pin A4) – Transfers data between devices.
- SCL (Serial Clock Line) (Pin A5)– Synchronizes data transfer.

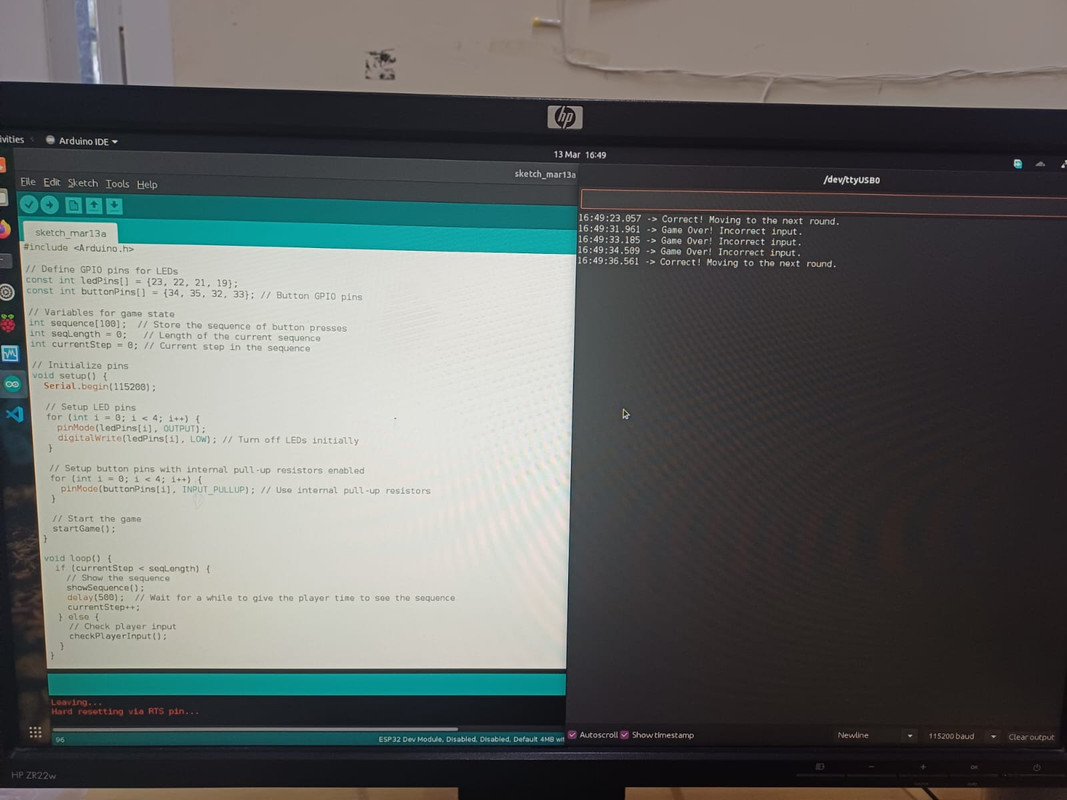

Task 2- IoT Task- Simon Says Game

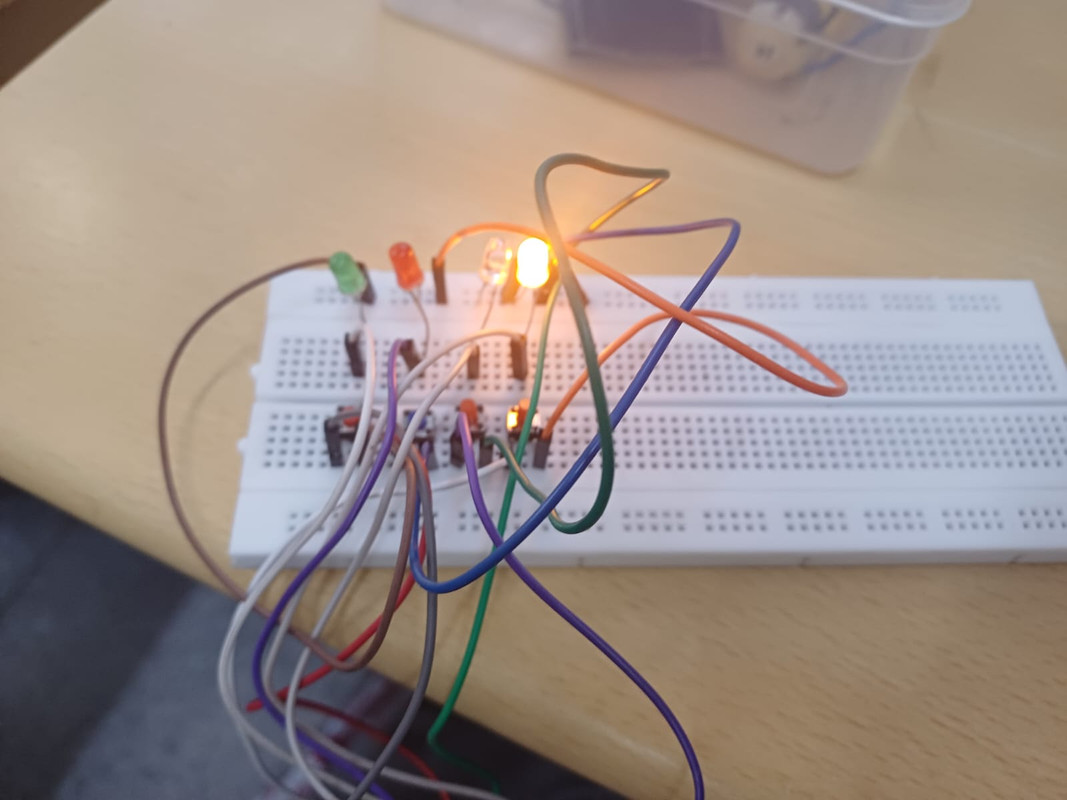

A Simon Says game on ESP32 uses LEDs and buttons to replicate the classic memory game. The ESP32 generates a sequence of LED flashes, which the player must repeat by pressing corresponding buttons. If correct, the sequence length increases; if wrong, the game resets.
Inventory Cataloging
I went through the cupboard containing important documents. These include:
- Attendance logbook
- Inventory logbook
- Alumni logbook
- Finance files
- Purple file which includes the undertaking form, the list of components required for domain; etc
Syllabus Updation
Here are some of my suggestions for level 1- EV-RE
IoT-based Smart Charger – Real-time monitoring of battery charge status using sensors. https://iotprojectsideas.com/battery-status-monitoring-system-using-esp8266-arduino-iot-cloud/?utm_source=chatgpt.com Components required:
- NodeMCU ESP8266
- TP4056 Charging Module
- 18650 Lithium Ion Battery
- Jumper cables
- 100k resistor
Permission letter/ Broadcast message
PERMISSION LETTER
Topic: An Engineering team in MARVEL is expecting the arrival of a large shipment to campus. The shipment is a very large CNC machine requested by students of design and prototyping domain. Due to the size and delicate nature of the machine, it cannot be transported by hand through the main door. Write a letter to the Principal requesting permission to use the back gate for a few days so that all the shipments can arrive via trucks, directly to MARVEL. As mentioned in previous exercises, feel free to imagine the details and add them to your letter.
To,
The principal,
UVCE,
KR Circle Bangalore.
5th March, 2025
From,
MARVEL,
UVCE,
KR Circle Bangalore
Subject: Permission to use the back gate for the transportation of a very large CNC machine.
Dear Sir,
The Engineering team of MARVEL is expecting the arrival of a shipment, it is a very large CNC machine as requested by students of design and prototyping domain. Due to the size and the delicate nature of the machine, it cannot be transported by hand through the main door. Therefore we request your permission to use the back gate for two days so that all the shipments can be transported via trucks directly to MARVEL.
Kindly do the needful.
Thanking You,
Yours truly,
MARVEL
BROADCAST MESSAGE Topic: MARVEL has been granted the opportunity to indulge a group of students across UVCE in an industrial visit. Broadcast the appeal of such an experience decidedly. Fabricate any necessary details like the company name, capacity of students allowed, etc.
Greetings from MARVEL! ✨
"Hands-on experience is the best way to learn about all the interdisciplinary aspects of robotics!"
MARVEL is hosting an industrial visit to GTTC- Bangalore.
Gain hands-on experience on machines and acquire more insight into what Engineering actually is, through this visit! Get exposed to the real-world Engineering problems and how to tackle them by joining us on this exciting visit to the GTTC- Bangalore. This visit is open to students of all branches.
Don't miss this unique opportunity to enhance your practical knowledge!
Date: 27th March, 2025
Time: 10:30 AM
Venue: GTTC- Bangalore
Industrial Safety Fees: ₹ 100
Last date to register: 23rd March, 2025
Registration link: xxxxxxxxxxxx
For further details, contact:
Name: phone number
Name: phone number
Name: phone number
Clerical work:
I accounted the given invoices and performed a simple financial analysis.
Budgeting and Wishlist:
Here's a budget estimate for the electronic components required for EV-RE level-1
- Breadboard: ₹100 – ₹150
- Ultrasonic Sensor (e.g., HC-SR04): ₹80 – ₹120
- Light Dependent Resistor (LDR): ₹10 – ₹20
- Push Button Pack (set of 5): ₹30 – ₹50
- Dual Motor Driver Module (e.g., L298N): ₹150 – ₹200
- LM35 Temperature Sensor: ₹50 – ₹70
- LED (pack of 10): ₹20 – ₹30
- 555 Timer IC: ₹15 – ₹25
- Arduino Uno: ₹450 – ₹600
- Potentiometer: ₹15 – ₹25
- DHT11 Temperature and Humidity Sensor: ₹80 – ₹100
- Hall Effect Sensor: ₹30 – ₹50
- 5V BO Motor: ₹60 – ₹80
- Breadboard Power Supply Module: ₹70 – ₹100
- N-Channel MOSFET: ₹20 – ₹40
- P-Channel MOSFET: ₹20 – ₹40
- Jumper Wires (pack of 40): ₹50 – ₹70
- 1N4148 Diode: ₹2 – ₹5
- Mini Solar Panel (5V, 1W): ₹150 – ₹200
- SG90 Servo Motor: ₹120 – ₹150
- TP4056 Battery Management System (BMS): ₹50 – ₹70
- Resistor Box (assorted pack): ₹100 – ₹150
- CL100 Transistor: ₹5 – ₹10
- PIR Motion Sensor: ₹100 – ₹150
- STM32 Microcontroller: ₹300 – ₹500
- Diode: ₹2 – ₹5
Here's a budget estimate for the electronic components required for EV-RE level 2:
- Breadboard: ₹100 – ₹150
- Push Buttons: ₹5 – ₹10 each
- ATmega8 Microcontroller: ₹100 – ₹150
- ATmega32 Microcontroller: ₹150 – ₹200
- Brushless DC (BLDC) Motor: ₹500 – ₹1,500 (depending on specifications)
- Electronic Speed Controller (ESC) 3A: ₹300 – ₹500
- Arduino Uno: ₹450 – ₹600
- Jumper Wires (Male-to-Male, pack of 40): ₹50 – ₹70
- 10kΩ Potentiometer: ₹15 – ₹25
- 3.7V Li-ion Cells: ₹200 – ₹300 each
- Battery Management System (BMS): ₹150 – ₹300
- LEDs (pack of 10): ₹20 – ₹30
